LN Mini Unit
LN Mini Unit Set up
Consisting of LN Unit MRE, MLE, and B2MS. LNscope and accessories round up the system

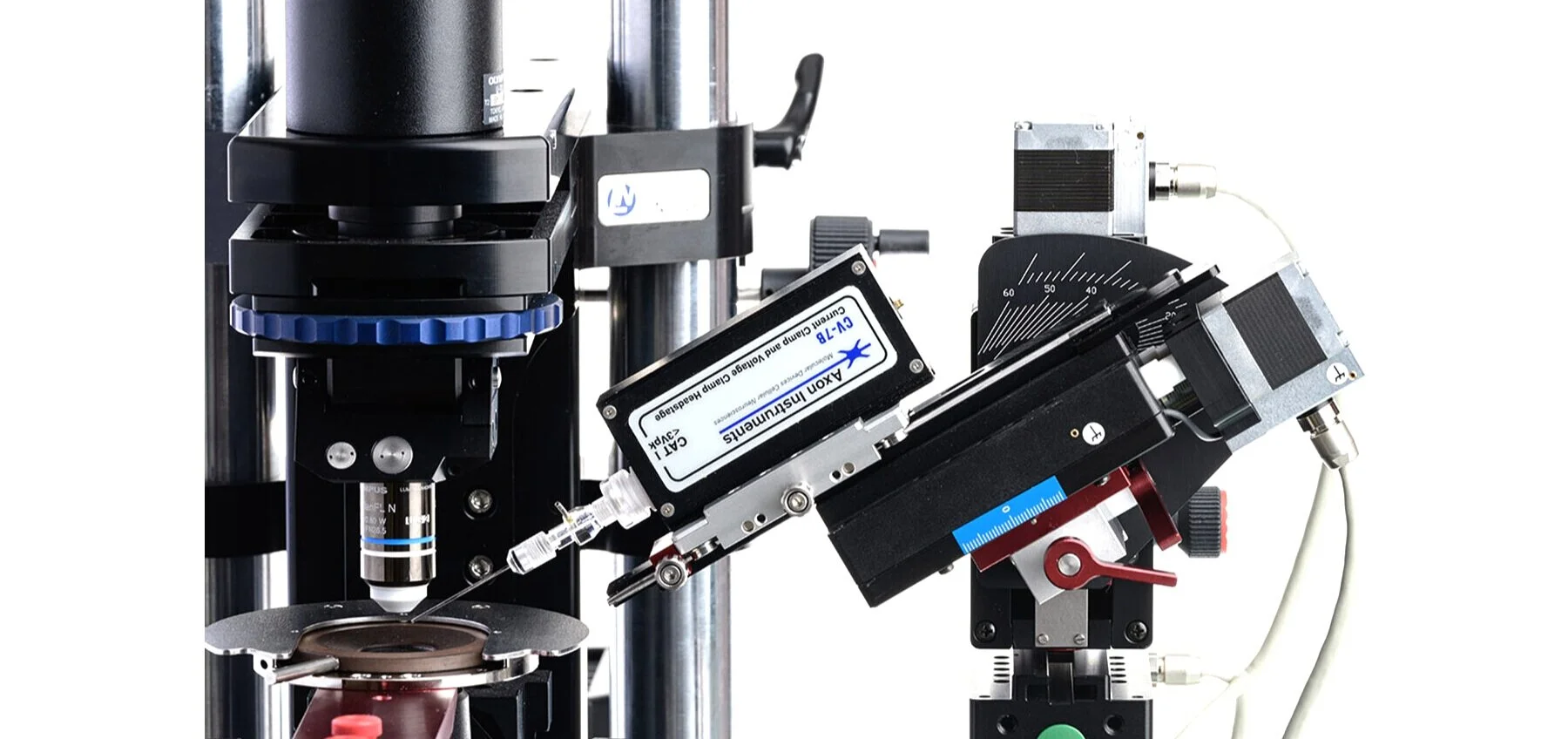

LN Mini Unit
Mounted on top of a stainless steel column with turn adapter for easy access to the electrode.
The LN unit consists of three Mini axes that are fixed using adapters to form a complete unit. The design of the device combines flexibility, stability, high resolution, and a drift-free experience. The X-axis patch angle can be adjusted on a continuous basis. All mechanical components are equipped with grounding points. The unit is available with a turn adapter, back-fold adapter, or the fast exchange system. This precise and reliable manipulator was invented in 1993 and thanks to our service policy, first-generation systems are still used in laboratories worldwide. Up to 8 manipulators can be fitted around the optical system.
Specs:
Travel in XYZ: 25 mm
Motor resolution: 4,8 nm
Reproducibility: less than 1 micron
Weight (complete Unit): 2,2 kg
Spindel lead: 0,5 mm
Smallest reproducible step: 20 nm
The new Mini has modified Mini Compact Y and Z axes with a range of movement of 25 mm. This provides not only increased sturdiness but also increased flexibility due to the addition of two t-slots
