Mini Compact Unit
The robust construction and wider body of the Mini Compact enable the device to hold and move heavy accessories such as drills, heavy headstages, or even custom-made accessories. This manipulator can also be operated coarsely, thanks to its robust design while maintaining well-known LN accuracy. The device can be mounted directly onto our round column system, V540 Stage, or directly onto the Antivibration table.
The device may also be mounted on a horizontal bar, allowing access from the top of the test area.
LN Compact InVivo 4 axis in combination with LN Stereotaxic frame, gas anesthesia mask, and ear bars.
LN Mini Compact, axial movement 55 mm
LN Mini Compact InVivo 4 axes, with direct stand, InVivo arm, and rail system for accessing the electrode

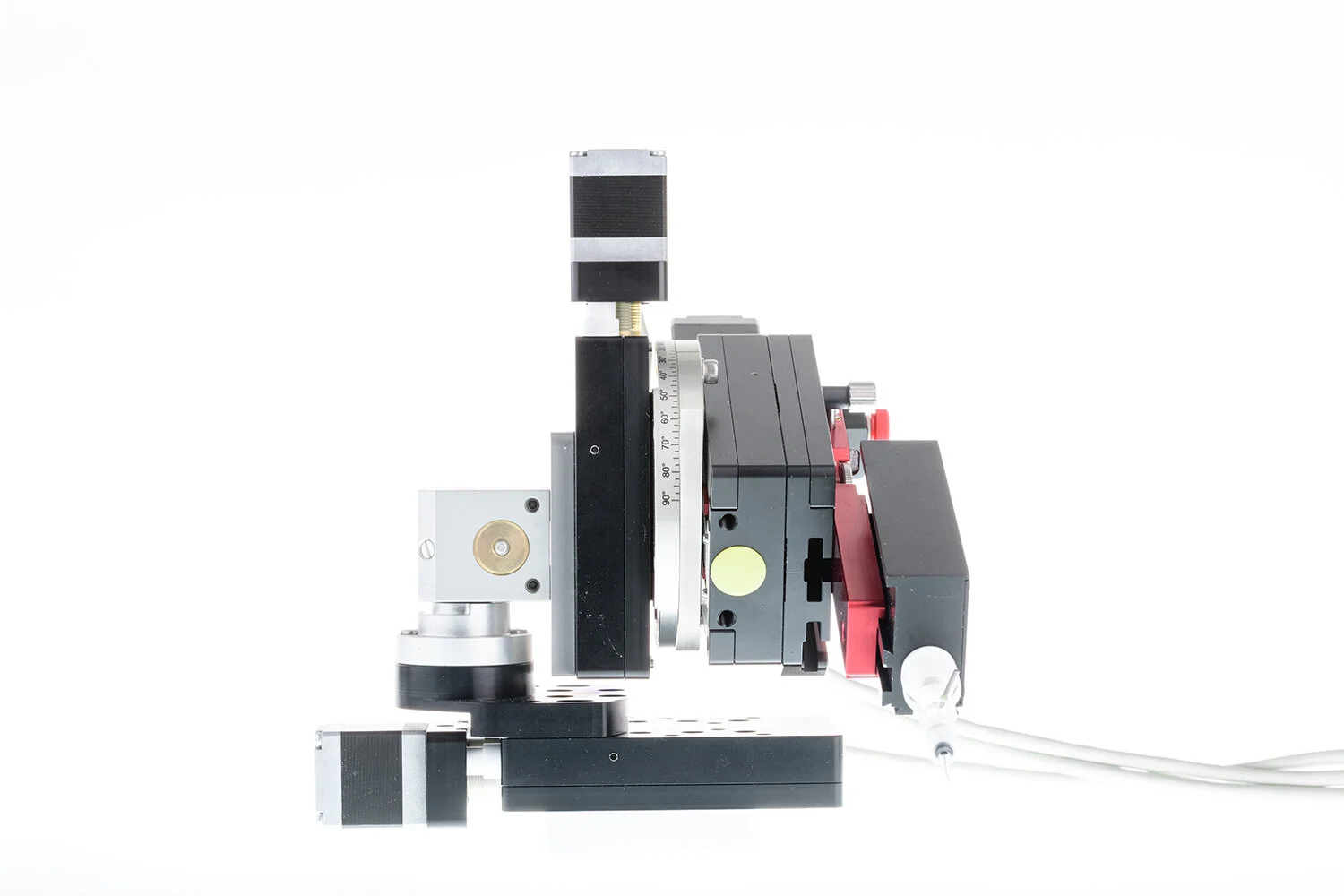

LN Mini Compact 3 axis InVitro, for LN V540 shifting table
Package consisting of LN Compact 4 axes, remote SM10 touch, and SM10 compact control box
Specs:
Travel in XYZ, Z2: 25 mm, optional axial Z2 axis with 55 mm
Motor resolution: 4,8 nm
Reproducibility: less than 1 micron
Weight (complete Unit): 3 kg (4 axes)
Spindel lead: 0,5 mm
Smallest reproducible step: 20 nm
